40000 - 60000 Liters Fuel Tank Semi Trailer 3 Axles For Transport Oil Diesel

Name: 40000 60000 Liters Fuel Tank Semi Trailer 3 Axles For Transport Oil Diesel
Brand: JNHTC
Price: 19999 USD

China 40000 - 60000 Liters Fuel Tank Semi Trailer 3 Axles For Transport Oil Diesel wholesale

Brand Name : JNHTC

Model Number : fuel tank trailer

Certification : ISO CCC WMI

Place of Origin : Shandong,China

MOQ : 1

Price : FOB 19999 USD/UNIT

Payment Terms : T/T, L/C, D/A, , D/P, Western Union, MoneyGram

Supply Ability : 2000 UNIT/MONTH

Delivery Time : 15 working days

Packaging Details : according customer's requirements

Max payload : 40T 60T,80t-100t

Size : According to your requirements,12500-3000-3100,10800*3000,11200,9968mm*2534mm*3566mm

Use : Truck Trailer

Material : Steel,Iron, Stainless steel, Aluminum alloy

Type : Semi-Trailer

Suspension : Air suspension,Mechanical/Air bag/Bogie Suspension,leaf spring

Axle : 13T FD brand 16ton brake pads

Landing gear : Standard 28Ton

King pin : 2"(50mm)or3.5"(90mm) JOST

Axles : three

Contact Now

3 Axles 40,000--60,000 Liters Fuel Tank Semi Trailer For Transport Oil Fuel Diesel

A semi-trailer tanker is an oil tanker that uses a traction head to connect the trailer part. Compared with the ordinary single tanker, the semi-trailer tanker can effectively improve the transportation efficiency. In the case of the same tonnage, the transportation cost is reduced and the fuel consumption is saved.

Specification

Specification for fuel tank trailer
Bulker Body
Shape	Elliptical, circular type shape
Payload	28T - 70tons
Volume	28000liter - 70000liter
Compartments	1-9
Tanker body	5mm
Manhole	2 - 9 pcs 16", 20" with vent valve
Discharge Valve	4" API Adaptor Valve or 3" Spherical Valve
Bottom valve	3", 4" Contral by Pneumatic Block
Chassis
Main Beam	Q345 Carbon steel material
Axles	2 - 3 pcs 13 - 20tons BPW or Fuwa Axles
Suspension	Mechanical, Air, Bogie
Brake system	6pcs T30/30 Brake Chambers, WABCO relay valve
Tire	12R22.5, 315/80R22.5, 12.00R24 Triangle Brand
King Pin	JOST 2" or 3.5 " Bolting Type

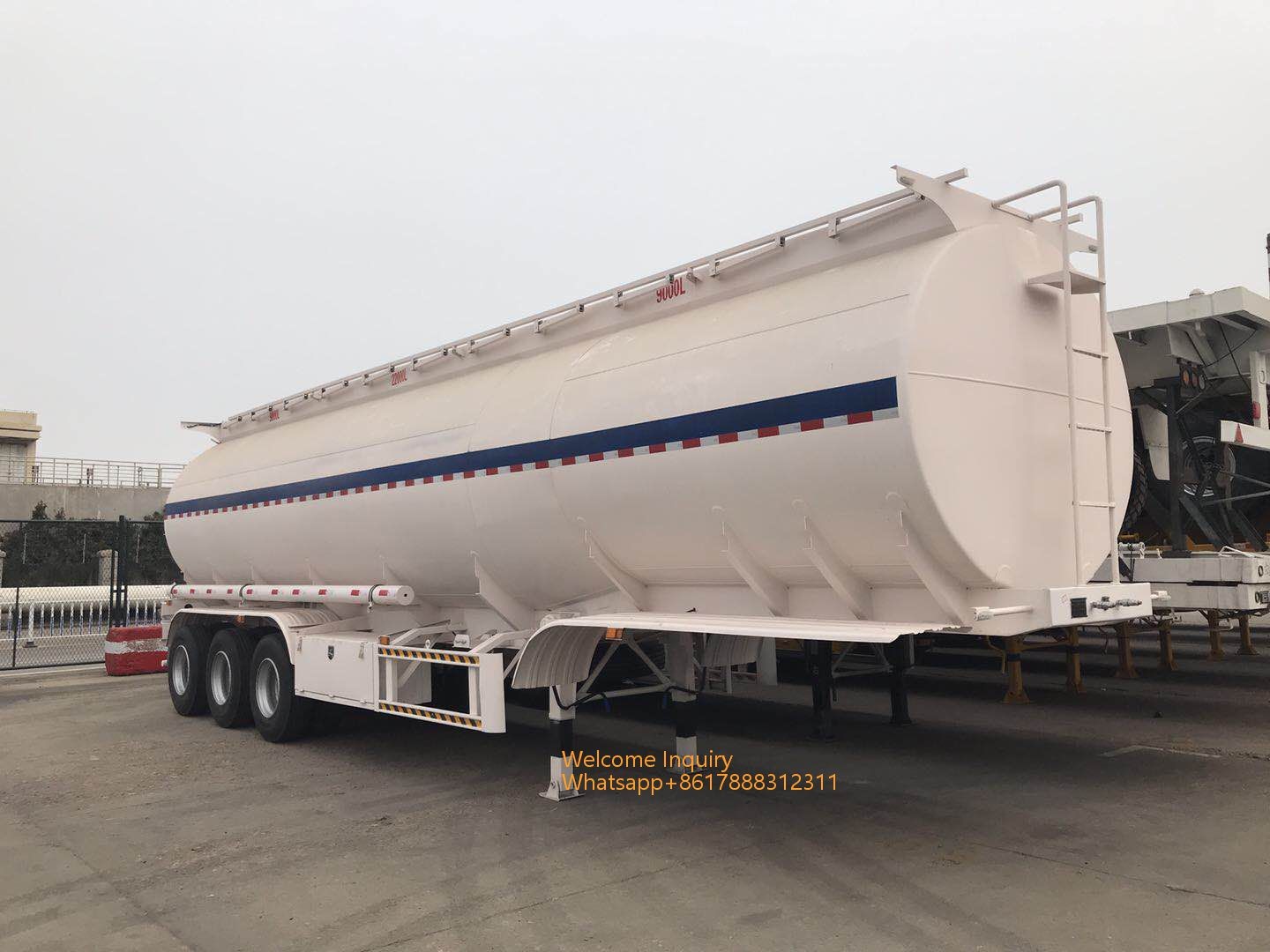

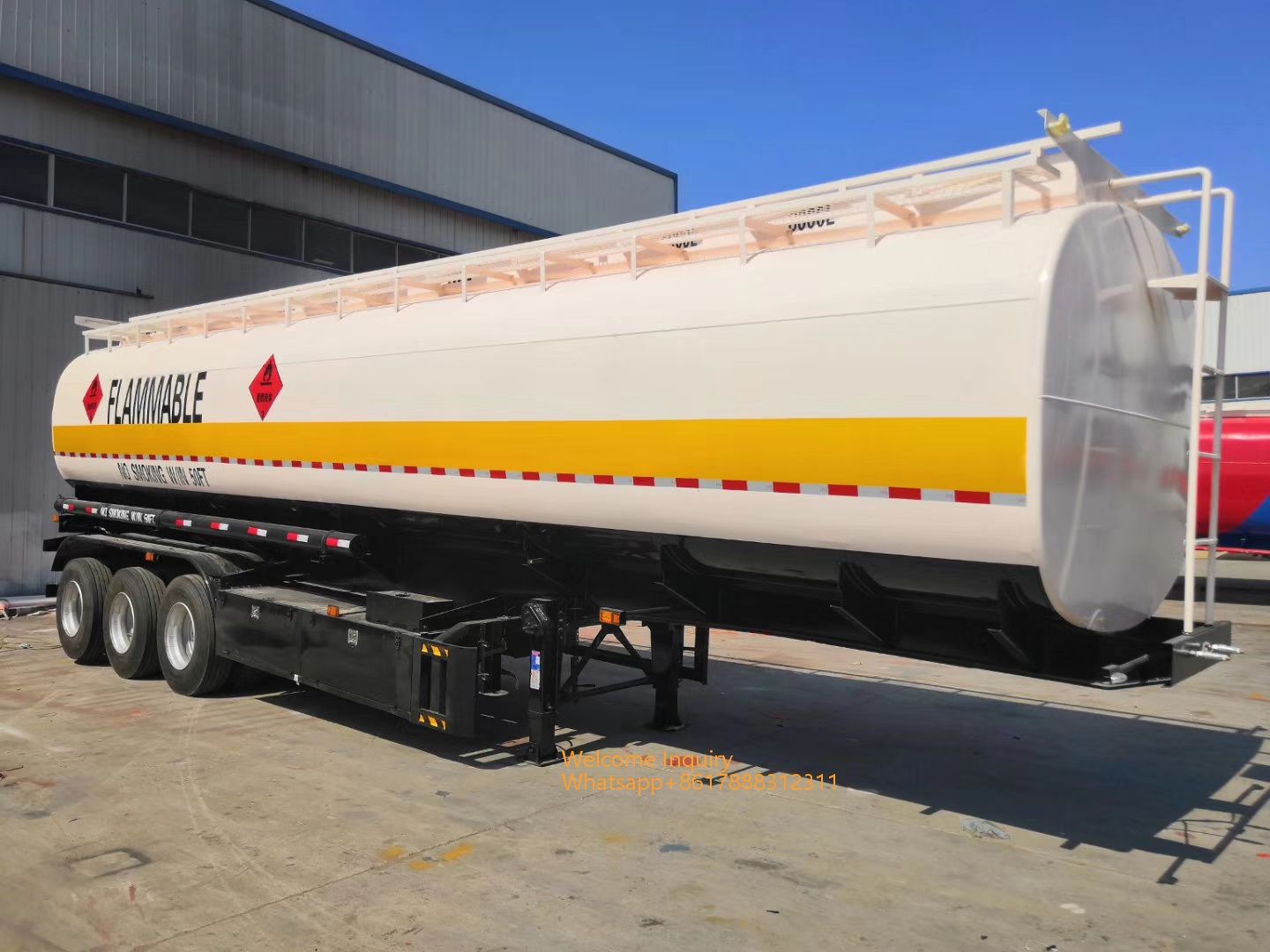

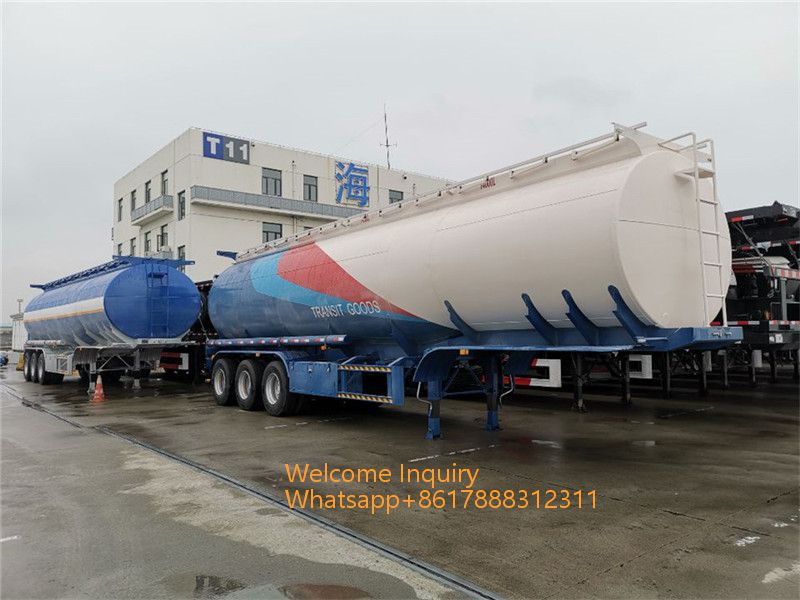

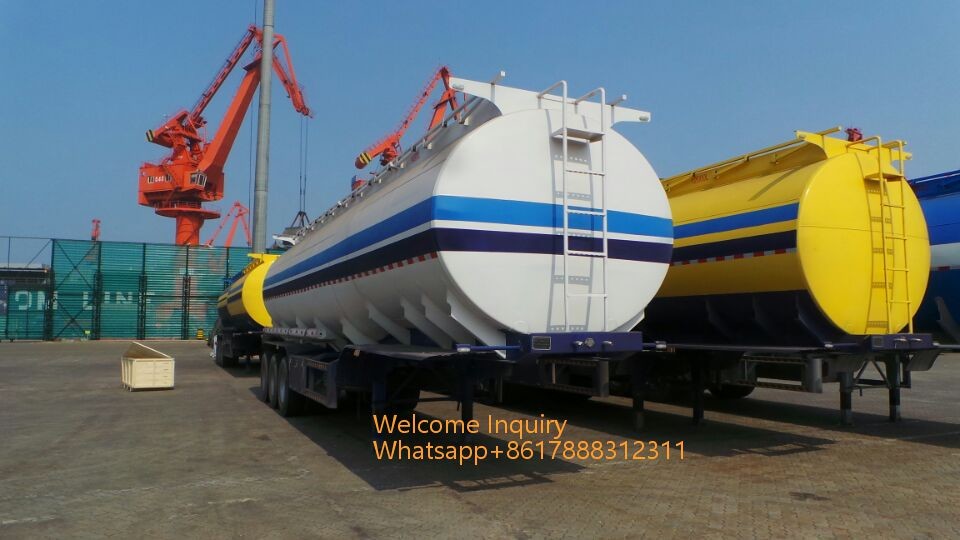

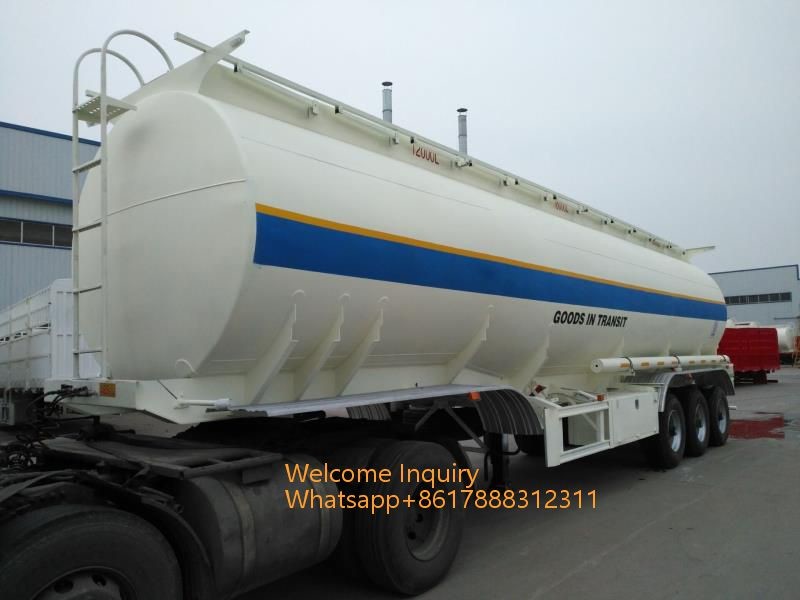

Product display

Fuel transport tank trailer is suitable for transporting gasoline, kerosene, diesel, vegetable oil, edible oil, heavy oil, coal tar and non-petroleum products such as alcohol, aldehyde, benzene, and other liquid substances.

Production Process

1. 3D Drawing and HyperMesh & Ansys

Fully utilize physical property, support higher performance, reducing operating cost

2. ADR standard API Adaptor

Crucial to any API bottom loading system, match 3″ or 4″ couplers

3. API Sockets Optic
Support bottom loading system

4. ADR standard Manhole with vapor vent
16″ or 20″, Aluminum material for a longer lifetime
Contact us
With reliable quality and professional services, We cover more than 80 countries and regions around the world, focusing on solving your one-stop trailer needs,.Welcome to send an inquiry, we will serve you wholeheartedly!
Sarah Woo
Email: sarah@sftruck.com
Mobile&Whatsapp:+8617888312311
